We proudly feature hardware from our partners at Shuttle. Affordable, yet powerful.
All Windows Xibo Media Players come Preconfigured with Windows IoT 64 Bit.
Software
Xibo for Windows was the first native player built for the Xibo CMS. It is open source and has no license fee. It can be deployed on Windows 7 and higher.
Hardware
Our entry level media player starts at $485 for our Windows Xibo Media Player CEL02U. We develop the Windows Media Players with as much care and attention to detail as any of our commercial offerings. Local, secure media storage means your content is on your Player in advance and played back even when the device loses connection with the CMS.
Software
Xibo for Android has a license fee of $30 per display for a perpetual license, with paid major updates. Or, you can subscribe to $25/annually per display and receive upgrades for free as they are released. Volume discounts are available.
Hardware
Our entry level Android media player starts at $185 with a perpetual Xibo Player license included. We offer Android Media Players from Shuttle that arrive to you preconfigured with the Xibo software, and ready to add to your CMS. The Android Media player is a great value for budget conscious users who require dependability and 4k performance.
White label options for both types of players are available.
We have the following Xibo Media players available and ready for purchase.
 |
 |
 |
 |
|
| Player Name and Description |

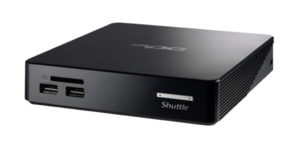

Android Xibo A02A Perfect for entry-level users, 4K playback,1-2 zones/ sources of content on the screen at a time (e.g. a video & ticker). |
Windows Xibo CEL02U Perfect for entry-level users, 4K playback,1-2 zones/different sources of content on the screen at a time (e.g. a video and a ticker). |

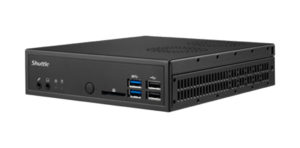

Windows Xibo CI30SE Perfect for digital menus, multiple zones of content, (e.g. a video, a weather feed and a Twitter feed), output to 2 displays, 4K playback. |

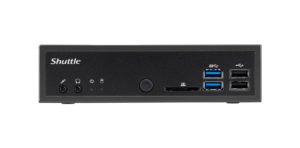

Windows Xibo CI5170 Perfect for high performance needs and multiple zones of content (for example, a video, a weather feed and a tTitter feed), output to up to 3 displays, 4K playback. |
| Xibo Media Player for Windows | x | |||
| Xibo Media Player for Android | x | x | x | |
| Operating System (OS) |
Android 5.1 |
Windows 10 IoT 64-bit |
Windows 10 IoT 64-bit |
Windows 10 IoT 64-bit |
| Processor |
Rockchip RK3368 Octa Core 1.5GHz SoC |
Intel® Celeron 3855U |
Support Intel Skylake Core i3 |
Support Intel Skylake Core i5 |
| Memory | 2GB onboard | 2 x 2 - 4 pin DDR3L SODIMM slots, Dual Channel DDR3L 1333/1600 Mhz | 2 x 4 DDR4 (8GB RAM Total) | 2 x 4 - 4 pin DDR3L (8GB RAM Total) |
| Video Output | GC6110 GPU | Intel HD Graphics | HDMI x1 + DisplayPort x1 Supports dual display 4K playback | HDMI (1) + DisplayPort (2) Support triple independent display 4K/2K Integrated in CPU (Intel HD 530 Graphics) |
| Audio | Realtek ALC5640-VB | Realtek ALC662 HD Audio | Realtek ALC662 channel High Definition Audio |
Realtek ALC662 channel High Definition Audio |
| Ethernet/WiFi | RTL8211F-CG 10/100/1000 Mbps RTL8723BS 802.11 b/g/n 1T1R with BT 4.0 Miracast support | Built in Intel I211 support 10/100/1000Mbs Built in Realtek RTL8188EE 802.11 b/g/n Wireless LAN | Realtek RTL8111G 100Mb/s and 1Gb/s operation Support Wake-On-LAN function/S WLN-M Universal WLAN-ac/ Bluetooth Combo Kit with M.2 Card | Intel i211 + i219LM Dual Lan 100Mb/s and 1Gb/s operation Support Wake-On-LAN function Support Teaming function |
| Front Panel | (1) Power Button (1) Power LED (1) HDD LED (2) USB 2.0 (1) SD card reader | (1) Power button (1) Power LED (1) HDD LED (1) USB 3.0 Type A (1) USB 3.0 Type C (1) SD card reader | (1) Power-On button (1) Power LED (1) HDD LED (2) USB 2.0 port (2) USB 3.0 port (1) Earphone-Out (1) Microphone-In (1) SD Card reader | (2) USB 3.0 ports (2) USB 2.0 ports (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED (1) SD Card reader |
| Back Panel | (1) HDMI (1) USB 2.0 (1) Ethernet (1) Lint-out (1) DC-in (1) Kensington lock | (1) HDMI (1) DisplayPort (2) USB 2.0 (1) RJ45 (1) DC-in Jack (1) Headphone+Mic in combo jack (1) RS232 (1) Kensington Lock | (1) External power on/Clear CMOS header (4) USB 2.0 port (1) HDMI port (1) DisplayPort (1) RJ45 Gigabit LAN port (1) DC in (1) Kensington lock (2) Wireless Antenna fixture | (2) RJ45 Gigabit LAN port (2) Display port (1) HDMI port (2) USB 3.0 ports (2) USB 2.0 ports (1) RS232* (1) S232/RS422/RS485* (1) External power on/Clear CMOS header (1) DC in (1) Kensington lock (2) Wireless Antenna fixture |
| Storage | 16 GB | 500 GB HDD | 500 GB HDD | 500 GB HDD |
| Dimensions | 141 (L) x 141 (W) x 29 (H) mm | 142 (L) x 142(W) x 42(H) mm | 190 (L) x 165 (W) x 43 (H) mm | 190 (L) x 165 (W) x 43(H) mm |
| Power | 12V/24W external adapter (NS02A) Support POE (PD), 802.3 at (NS02E) | Automatics Voltage adjustment between 100 and 240VAC 50/60Hz 65 Watts (19V/3.42A), 2 pin | 90W Power Adapter Input:100- 240V AC Output: 19V 4.47A DC | 90W Power Adapter Input:100- 240V AC Output: 19V 4.47A DC |
| Accessories | Quick guide Rubber mats VESA mount Power adapter (for NS02A) Vertical stand (option) HDD rack and cable (option to PHD5) | Quick guide DVD driver VESA mount Stand Power adapter and cord | XPC Multi language Quick User Guide XPC DVD Driver 1* Power cord Screws Optional 802.11b/g/n/ac + BT module |
XPC Multi language Quick User Guide XPC DVD Driver VESA mount VESA mount quick installation guide (1) Power cord (1) SATA cable (Screws Optional) 802.11b/g/n WLAN module |
Note: Media players do not include a keyboard or mouse that are required for operation.
